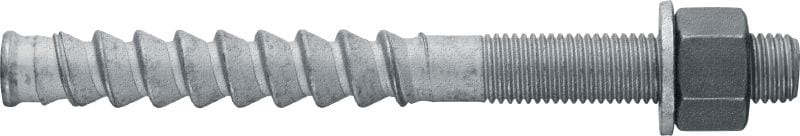

HIT-Z-F Anchor rod
New productItem #r3667162
Ultimate-performance anchor rod for injectable hybrid anchors (multilayer)
- Material, corrosion: Carbon steel, Multilayer coating
- Drill bit diameter: 22 mm
- Environmental conditions: Dry indoor, Indoor with temporary condensation
Share
Features
- Very high loads in cracked concrete and seismic applications in accordance with ETA C2 applications
- No hole cleaning required (5°C / 41°F) with HIT-HY 200
- Increased productivity and safety through elimination of the hole cleaning process
- Head marking for easy verification of rod length, even after installation
- The first adhesive anchoring system for use in cracked concrete and seismic applications in diamond-cored holes
Applications
- Fastenings in cracked and uncracked concrete in combination with HIT-HY 200
- Seismic anchoring applications

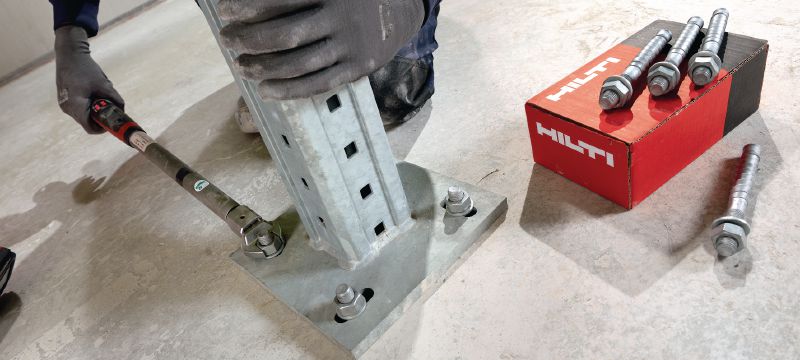

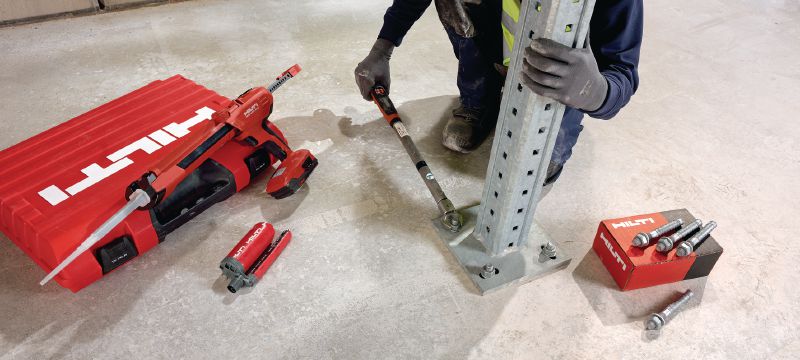

- Anchoring structural steel
- Anchoring secondary steel structures
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- ETA 12/0006 for HIT-HY 200-A injection mortar and HIT-Z(-F)(-R) rod for anchoring applications, English, German, Polish, [ 9.1 MB ]
- ETA 11/0492 for HIT-HY 200-A injection mortar for rebar (ETAG 001-05, Option -), English, German, Polish, French, [ 7.8 MB ]
- ETA-12/0084_HIT-HY-200-R_Anchor_EC2&TR055_50years_082019, English, German, [ 3.4 MB ]
- ETA 11/0354 for HIT-CT 1 injection mortar for anchoring applications, English, [ 868.2 kB ]
- ETA-11/0493_HIT-HY 200-A_Anchor_EC2&TR055_50&100years_122020, English, German, Polish, [ 7 MB ]
- ETA_16/0515_HVU2_capsule_022023, English, German, Polish, [ 5.6 MB ]
- ETA-20/0541_HIT-RE 500 V4_Anchor_EC2_100years_112021, English, German, Polish, French, [ 8.9 MB ]
- ETA-19/0601 HIT-HY 200-A/R V3 Anchoring Jun-2023, English, German, Polish, [ 21.5 MB ]
