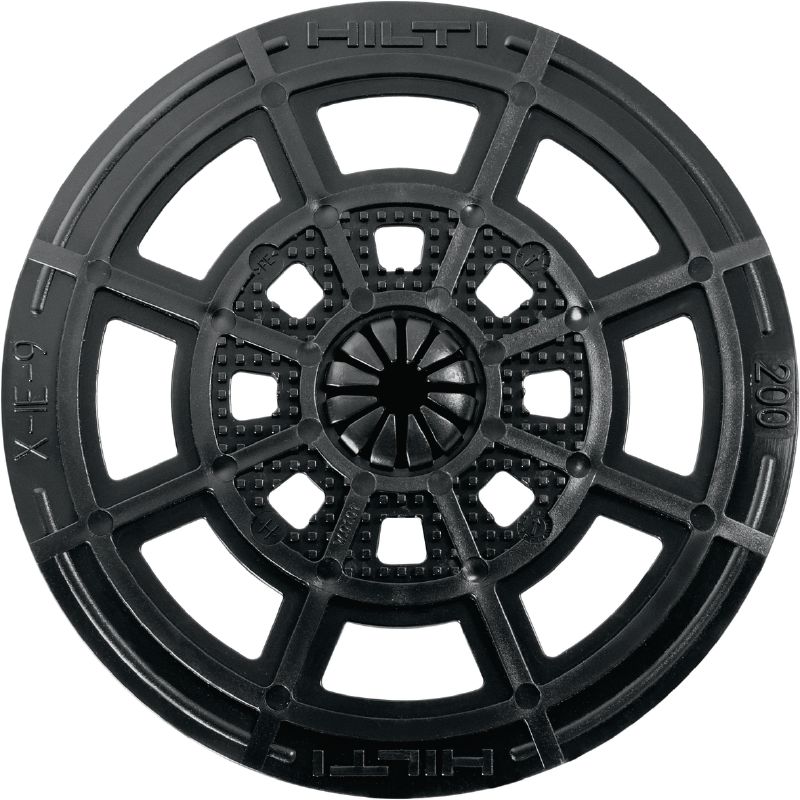

X-IE 9 Insulation fastener
New product
Ultimate
Item #r123894
Insulation fasteners for fixing soft mineral wool on soft to tough concrete, masonry and steel
- Application: Rigid Board Insulation, Mineral Wool Insulation
- Insulation material: Mineral wool
- Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
Share
Features & Applications
Features & Applications
Features
- Extremely quick insulation fastening system – up to five times faster than conventional methods
- Specially-designed 90 mm disc diameter for soft mineral wool, providing excellent clamping of the insulation
- Suitable for 40-200 mm thick insulation
- Ultimate-performance, high-hardness nail – provides better drivability into concrete with best-in-class stick rates and holding values
- Excellent thermal efficiency in a one-step solution – no cap is required
Applications

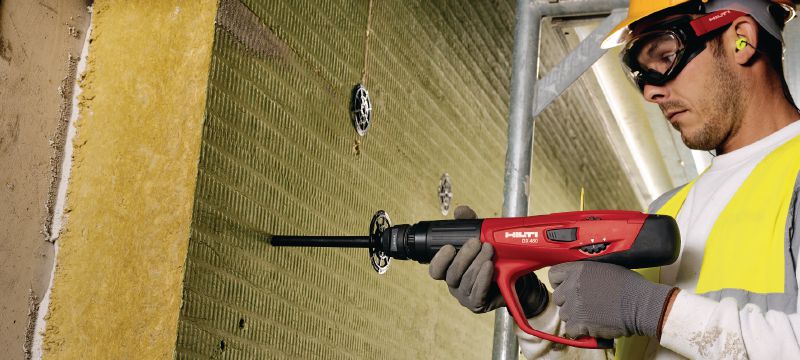

- Fastening soft mineral wool on soft and tough concrete, masonry and steel

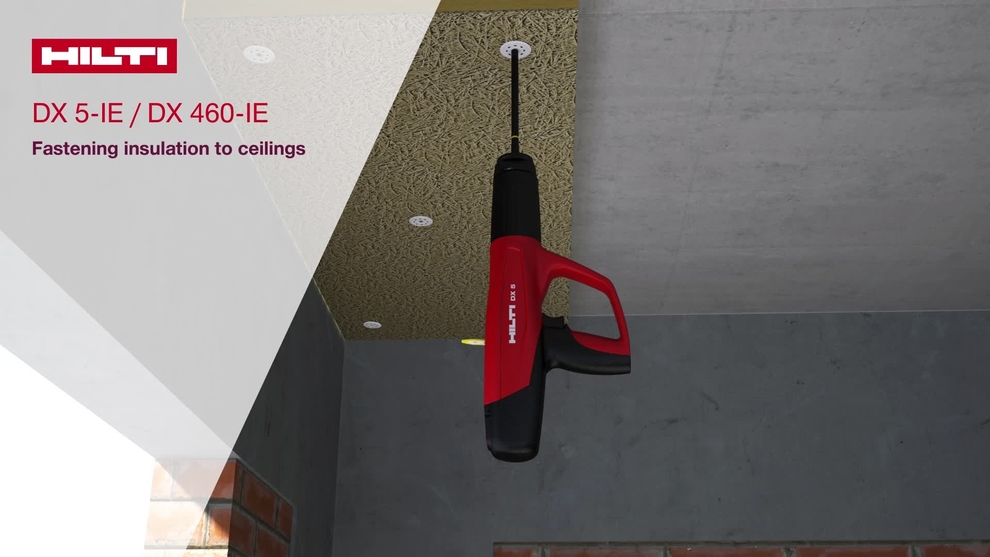

- Ceiling insulation

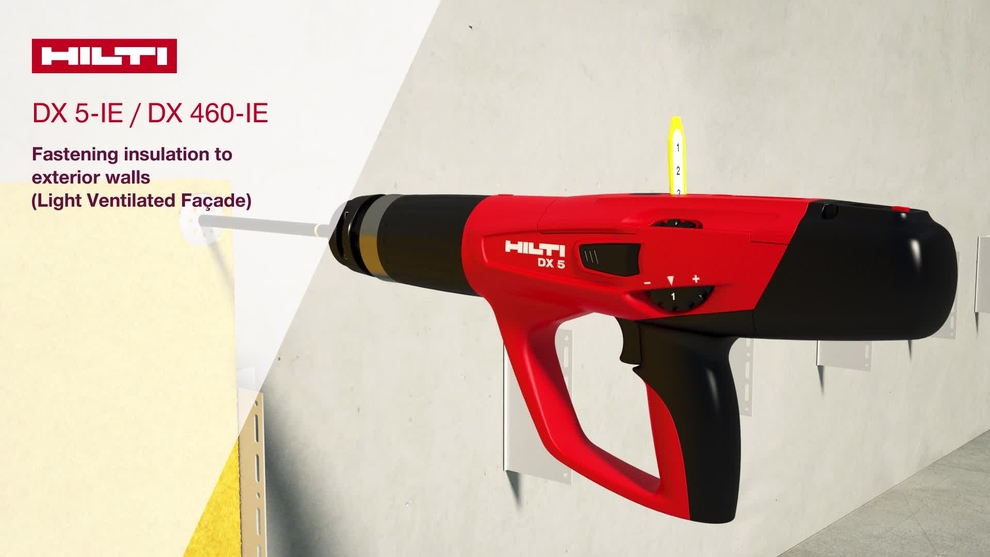

- Light ventilated façade insulation

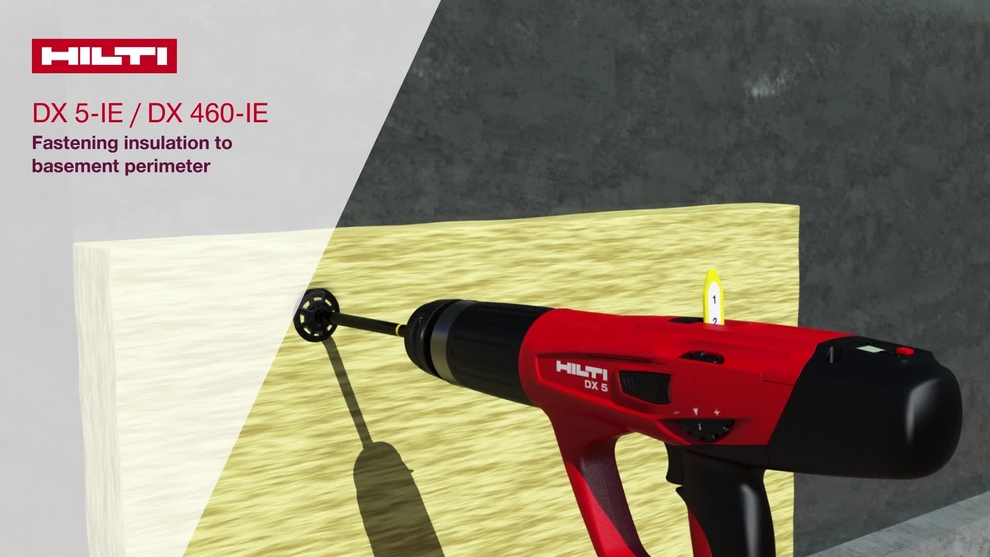

- Basement perimeter wall insulation
- Not suitable for rigid or multilayer insulation boards such as XPS, PUR and PIR foams
