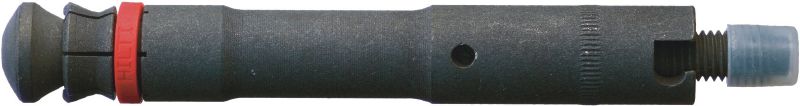

HDA-TF Undercut anchor
New productItem #r2346
Ultimate-performance through-set undercut anchor for dynamic loads (sherardised steel)
- Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
- Head configuration: Externally threaded
- Max. fixture thickness at standard embedment depth: 40 mm
Share
Features & Applications
Features & Applications
Features
- Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
- Close spacing and small edge distances thanks to very low expansion forces
- Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
- The resulting keying effect helps to provide a secure hold in cracked concrete under dynamic loading
- Manufactured under the NQA-1 nuclear quality program
Applications
- Safety-relevant, heavy-duty fastenings for all dynamic loading in cracked or uncracked concrete, including applications in nuclear power plants

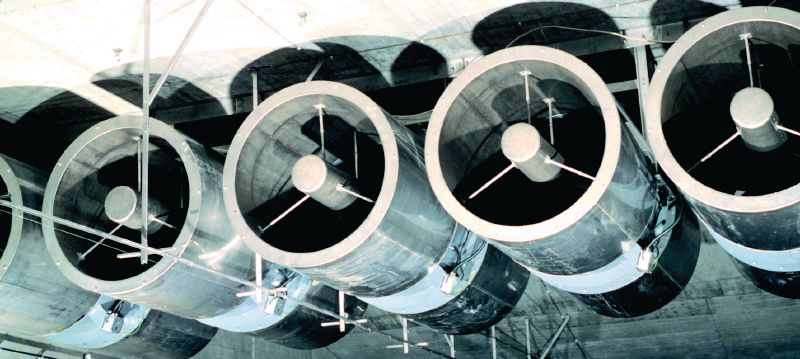

- Examples: supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fastening points, elevator tracks, bridge retrofitting etc.
