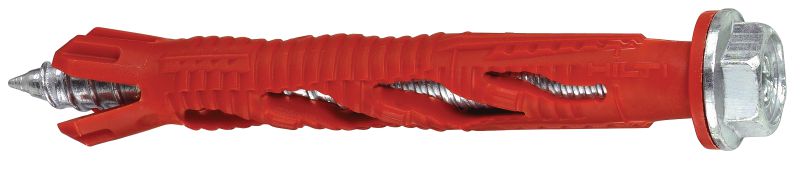

HRD-H Plastic frame anchor

Item #r4677

High-performance collared plastic anchor for frames (carbon steel, hex head)

Base materials: Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration: Hex head
Approvals / test reports: ETA, Fire

More technical data

Customers also searched for collared plastic frame, anchoring, fastening hand rails, anchors or plastic anchor

Features & Applications

Features

Flexible embedment depth (approved at 50 mm and 70 mm embedment depth) - the ideal anchor for a huge range of applications in virtually all base materials
Suitable for fastening thicknesses up to 150 mm (anchor lengths from 60 mm to 200 mm)
Available in 4 different materials for optimum suitability in all corrosive environments
Pre-assembled for optimum handling and fastening quality

Applications

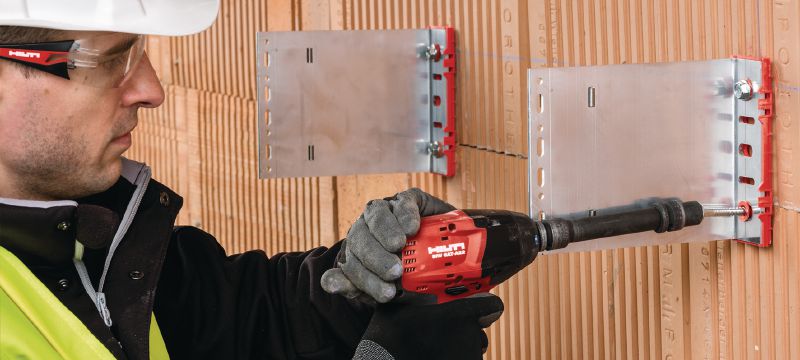

Fastening metal substructures for ventilated facades
Typical applications for metal fabricators such as fastening handrails, window bars, railings, balustrades, etc.

For approval or certificate information, please see individual items.
