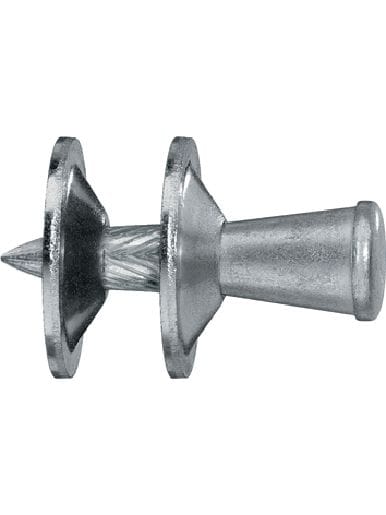

X-ENP Metal deck fasteners
New product UltimateItem #r6230

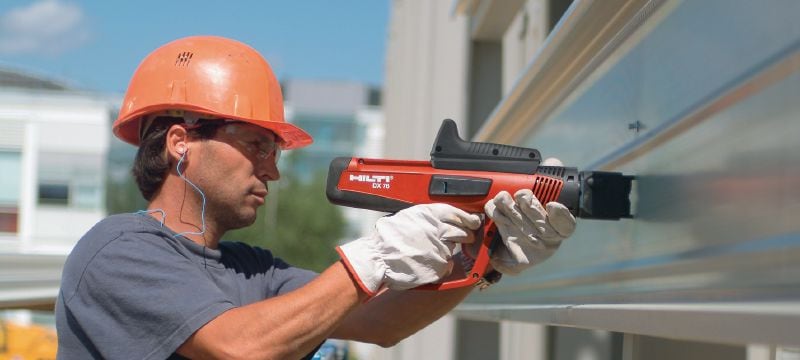

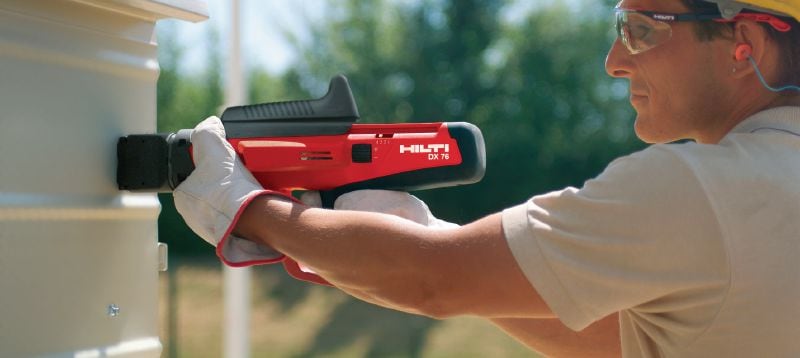

Single nail for fastening metal decks to steel structures with powder-actuated nailers
- Base materials: Steel
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Galvanised zinc coated <20 µm
Share
Customers also searched for direct fastening, industrial fastening, Decking & Siding or sheet metal nails
Features
- A much faster and safer fastening system compared to welding
- Fully knurled tip provides high holding capacity
- High application limits – can be used on steel with a thickness of at least 6 mm (1/4")
- Proven system and has several worldwide approvals for siding and decking
- No predrilling required, even on thick steel
Applications
- Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for composite decking
- Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing
- Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for siding
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- ABS Approval 21-2146146-PDA for carbon steel powder-actuated fasteners, English, [ 111.3 kB ]
- UL R13203 for roof deck fasteners, English, [ 64.8 kB ]
- ETA-04/0101 for X-ENP-19 sheet metal fastener, English, German, Polish, French, [ 7.2 MB ]
- FM 3054498 for Hilti steel deck fasteners, English, [ 168.7 kB ]
Application videos
-
Hilti deck fasteners vs. puddle welds (single)
-
X-ENP high-strength nail
