S-BT MR Screw-in stud (aluminium)
New product UltimateItem #r6837878
Threaded screw-in stud (stainless steel, metric thread) for multi-purpose fastenings on aluminium in highly corrosive environments
- Base materials: Aluminium
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Stainless steel A4(316) or equivalent
Share
Features

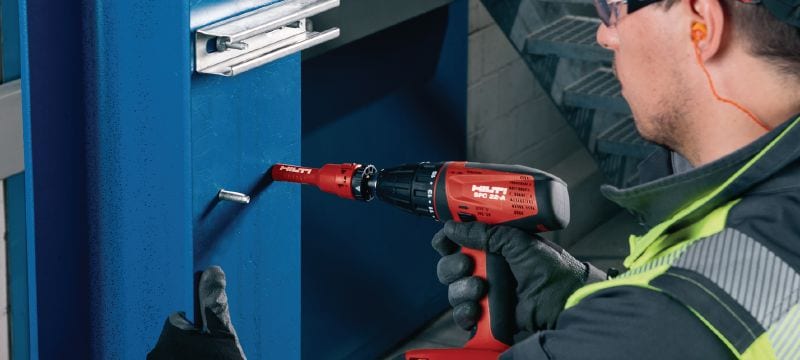

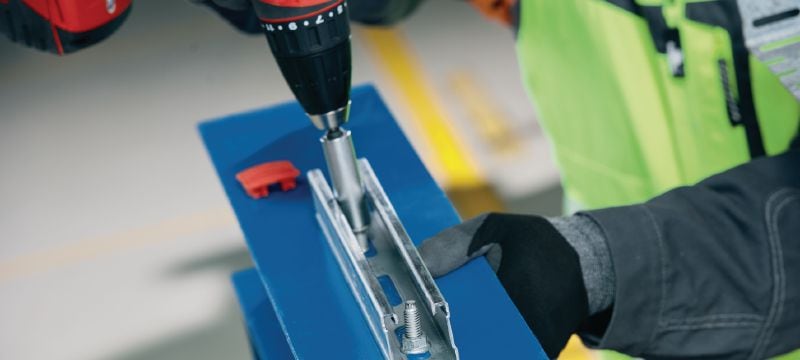

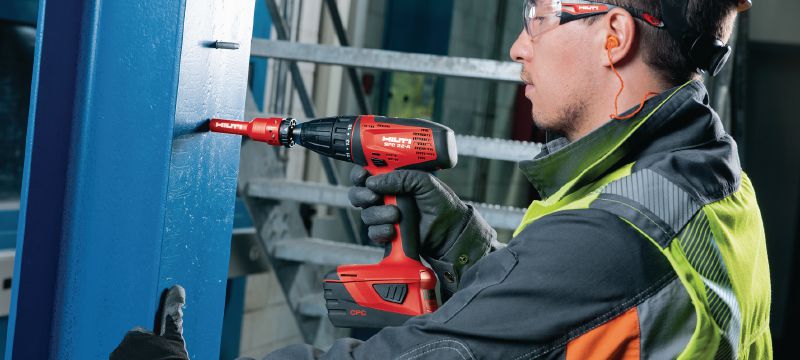

- The S-BT MR is easier and more reliable to use – it is especially well suited to installation with light, cordless tools
- Suitable for use in highly corrosive environments (C4 and C5) on aluminium
- Easy installation in tight spaces
- High corrosion resistance and thus suitable for most marine, offshore, petrochemical and power plant applications
- No propellant required
Applications
- Fastening on aluminium structures with a thickness of 6 mm or greater
- Fastening cable ladders using channels or hold-down/expansion guide clips

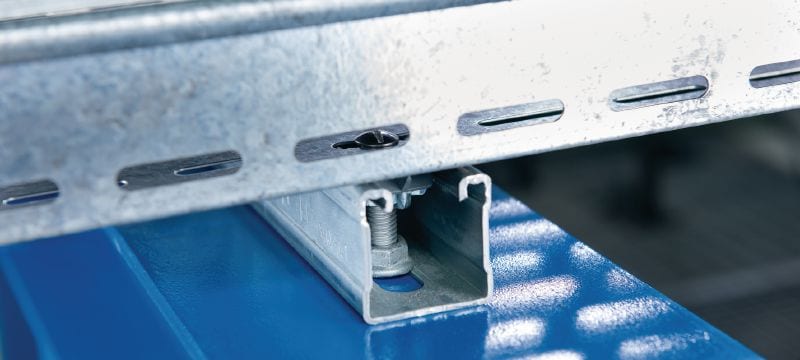

- Fastening cable trays and cable runs using channels or conduit clips

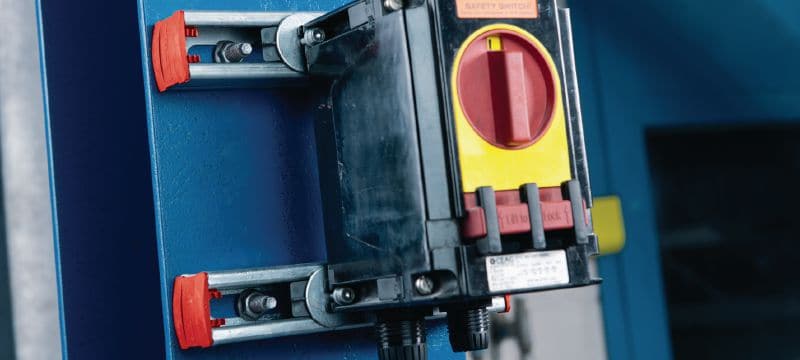

- Fastening junction boxes, switchgear and instrumentation panels directly or using channels
- Fastening lighting fixtures and signage
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- ETA-20/0530_S-BT_2020.09.18_en, English, German, [ 3.3 MB ]
- RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 108.1 kB ]
- ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English, [ 1.7 MB ]
- BV Type Approval 45116/A2_BV for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R, X-FCM-M and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 535 kB ]
- LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English, [ 470.9 kB ]
