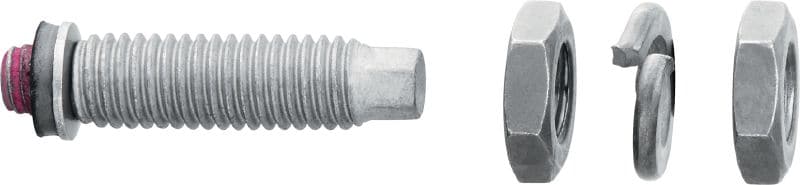

Electrical connector S-BT-EF
New product UltimateItem #r8228038
Threaded screw-in stud (carbon steel, metric thread) for electrical connections on steel in mildly corrosive environments
- Base materials: Steel
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Duplex coating, equivalent to 45 µm hot-dip galvanised
Share
Customers also searched for Pipe flange bonding, Earthing, Electrical bonding or Electrical grounding
Features
- Faster and easier installation
- Enhanced protection against static electricity
- Enhanced safety – allows electrical current to flow through the stud and then discharges it properly into the base material
- Suitable for use on most standard steel structures and pipes
- Suitable for use in mildly corrosive environments (C3)
Applications
- Functional bonding
- Protective bonding
- Terminal connection
- Lightning protection
- Bonding and earthing/grounding
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 108.1 kB ]
- ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English, [ 1.7 MB ]
- BV Type Approval 45116/A2_BV for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R, X-FCM-M and X-FCS-R fastening system in off-shore and shipbuilding application, English, [ 535 kB ]
- LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English, [ 470.9 kB ]
- Canadian UL E257069 for X-BT and S-BT fastenings of grounding and bonding equipment, English, [ 80.1 kB ]
- UL E257069 for X-BT and S-BT fastenings of grounding and bonding equipment, English, [ 79.7 kB ]
