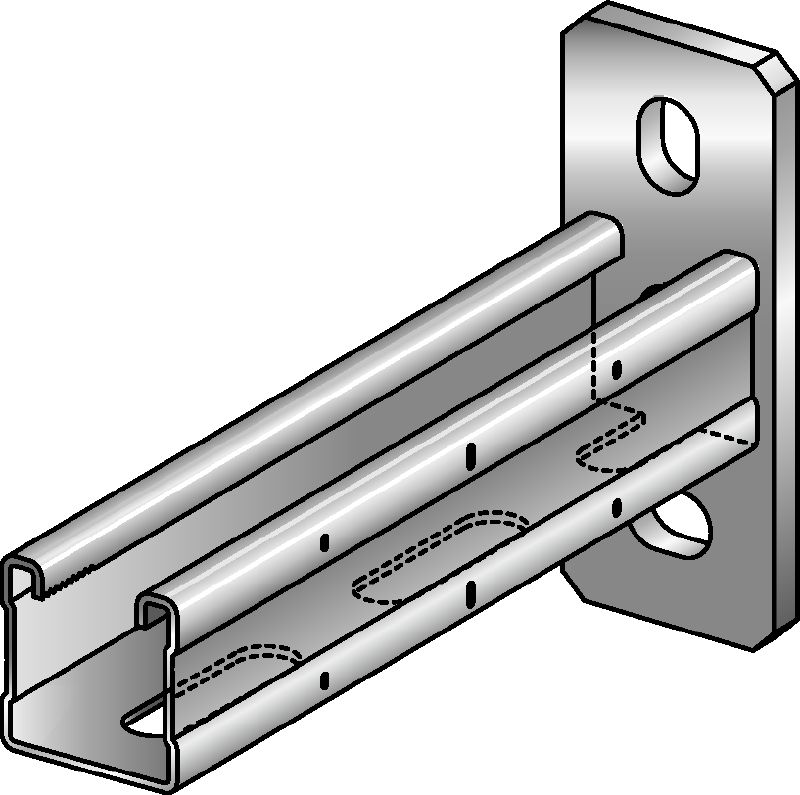

MQK-41-R Bracket Stainless steel bracket with a 41 mm high, single MQ strut channel for high corrosion protection

Move cursor over image to zoom.

Click on image to zoom.

MQK-41-R Bracket

Item #r4329

Stainless steel bracket with a 41 mm high, single MQ strut channel for high corrosion protection

Material thickness: Channel: 2 mm, Baseplate: 8 mm
Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish: Outdoor Plus - Stainless Steel

More technical data

Share

Customers also searched for metal brackets, installation channel, connecting metal channels, metal connectors or brackets

Features & Applications

Features & Applications

Features

C-profile with serrated edges – for higher pull-out and shear capacity
Engineered for higher shear load capacity and easier assembly
Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
Pre-marked dimensions – for quicker installation, assembly and measurement
Single channel, slotted

Applications

Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
Installation in industrial atmospheres or areas with high levels of condensation
Installing cable trays, air ducts and pipe supports
Recommended for use in corrosive environments

Technical Data
