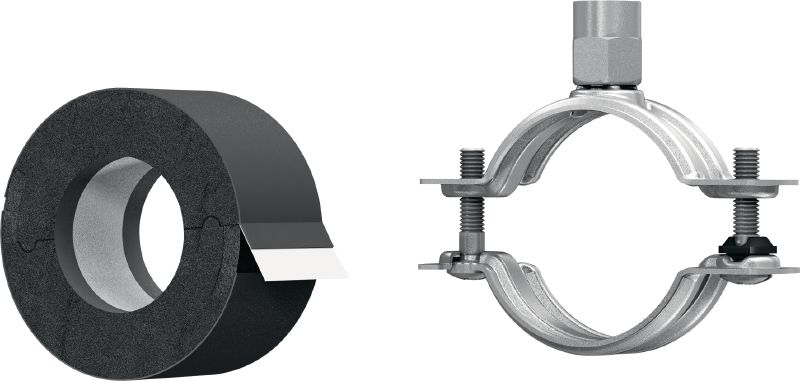

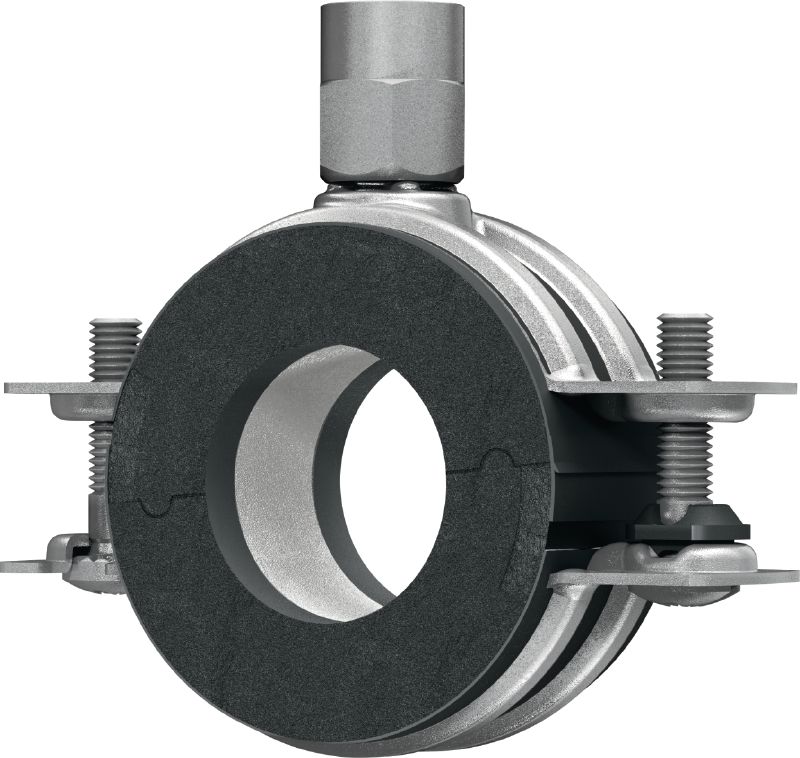

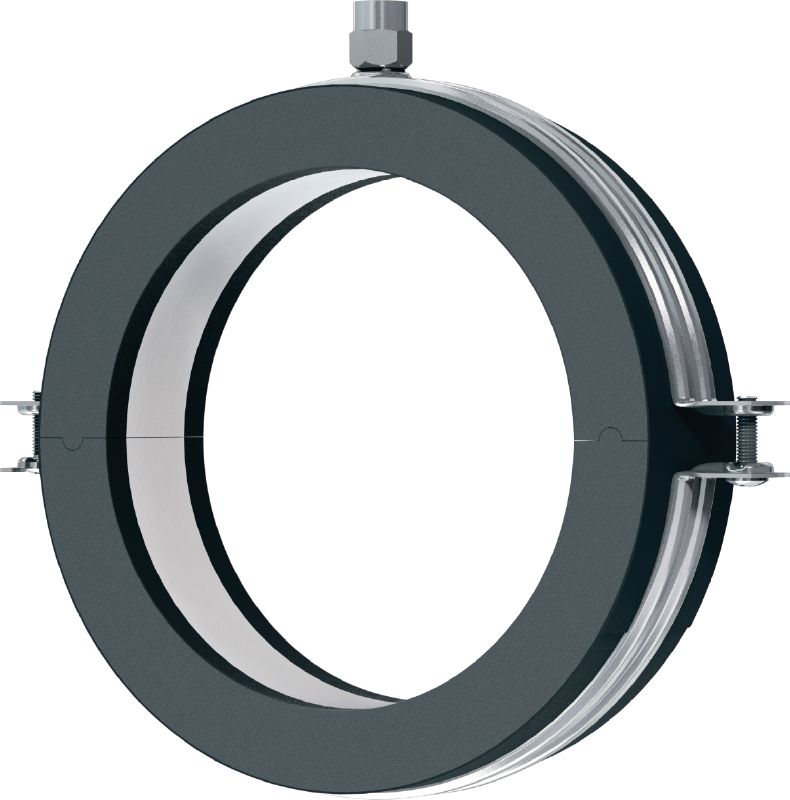

MRP-RPC Quick-close refrigeration pipe clamp
New product
Premium
Item #r4164810
Premium galvanised pipe clamp for economical cold water and chilled water applications
- Thread connection - M: M8, M10
- Noise reduction: 22.5 dB (A)
- Temperature resistance: -40 - 105 °C
Share
Features & Applications
Features & Applications
Features
- Designed for all insulation thicknesses from 13-19 mm with joint-to-pipe insulation material (elastomeric caoutchouc)
- 360° mounting – the load capacity is achieved no matter how the core is rotated inside the pipe clamp
- Adhesive foil can be released very easily, even when wearing gloves
- Thermal insulation helps to prevent condensation on the surface and vapour-retardant foil helps to prevent condensation on the pipe
- Compensation feature helps to prevent buckling and lifting of the outer foil when closing the pipe clamp
Applications

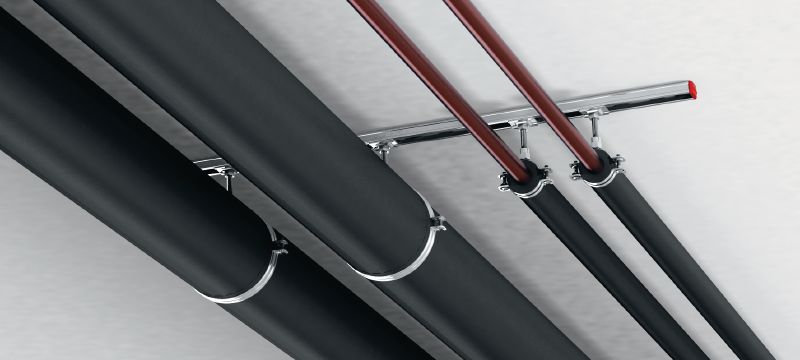

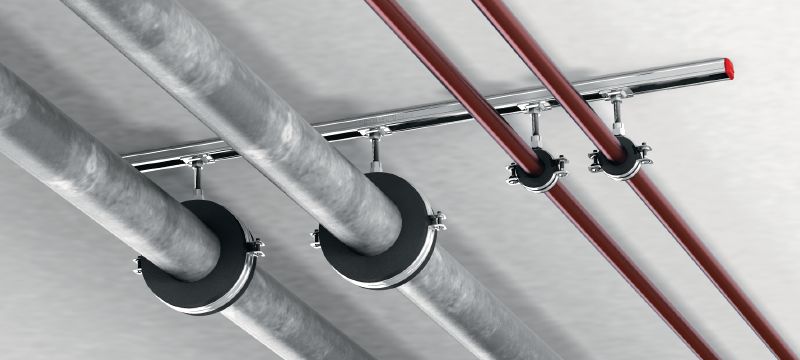

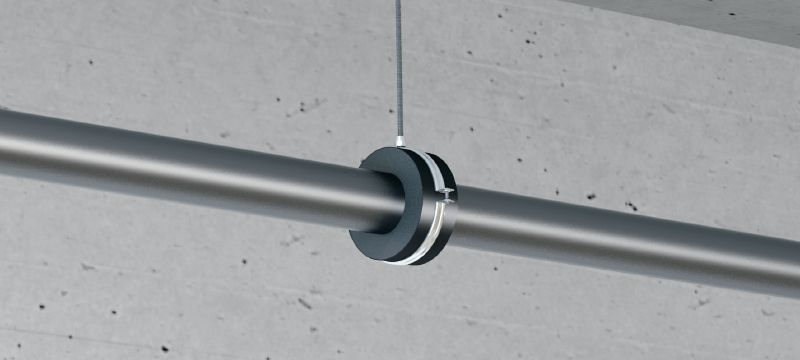

- Fastening cold water and chilled water pipes up to 219 mm diameter
- Suitable for application temperatures from 4-70°C
