Hilti

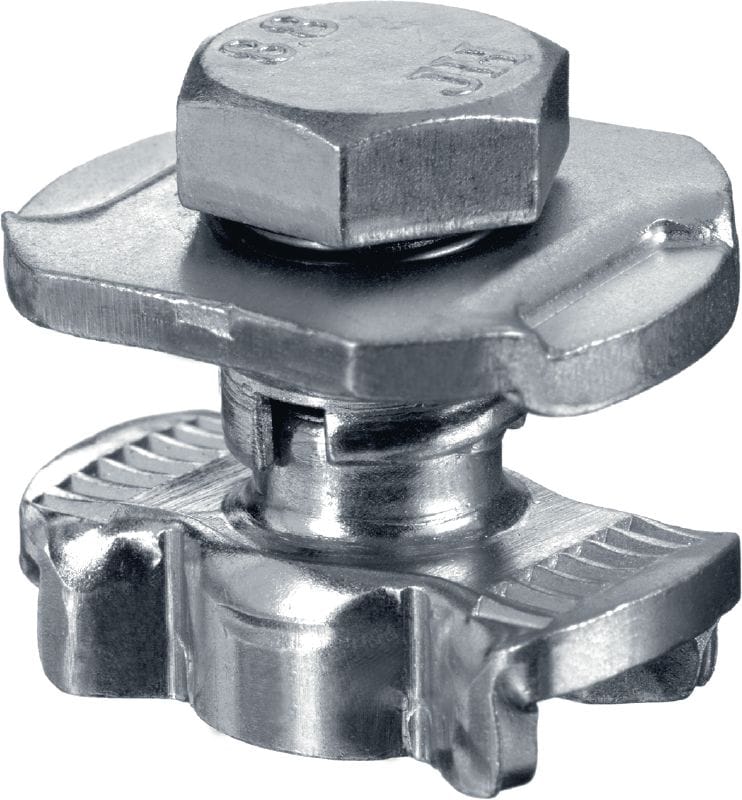

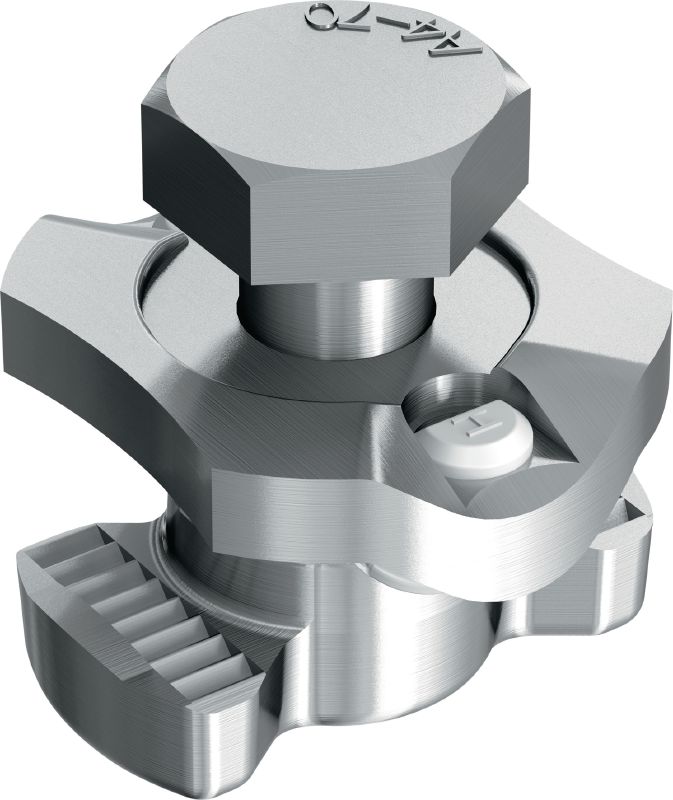

MQN-R Channel connector

Stainless steel (A4) channel connector for joining any elements with a butterfly opening

  • Tightening torque:  40 Nm
  • Thread connection - M:  M10
  • Material composition:  Screw: A4-70 - DIN ISO 3506-1, Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L
More technical data
Share

Features & Applications

Features
  • Designed to be simple, compact and time-saving
  • Universal – one connection element for all MQ strut channels
  • Universal – one push button for all connectors and MQ installation channels
  • Holds securely once it has been pressed, turned and tightened correctly
  • Fewer parts and high flexibility
Applications
  • Connecting stainless steel MQ brackets, angles and bases to MQ profiles
  • Connection element for U-frame/crossbeam structures
  • Connecting strut channels and structural elements
