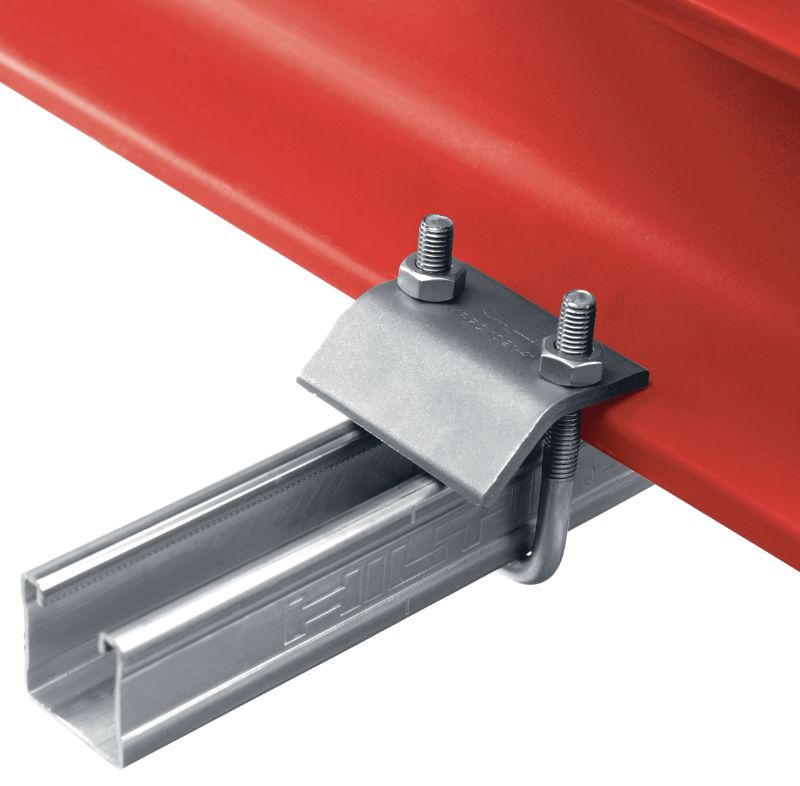

MQT-R Stainless steel (A4) beam clamp for connecting MQ strut channels directly to steel beams

Move cursor over image to zoom.

Click on image to zoom.

MQT-R

Item #r2914

Stainless steel (A4) beam clamp for connecting MQ strut channels directly to steel beams

Wrench size: 17 mm
Tightening torque: 10 Nm
Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L, Nut: A4-70 - DIN EN ISO 3506-2

More technical data

Share

Customers also searched for stainless steel connectors, metal connectors, metal clamps, SS connectors or beam clamps

Features & Applications

Features & Applications

Features

Easier installation and positioning of strut channels
No drilling or welding necessary
(max. clamping thickness ≤ 23 mm)
Versatile, no small parts to lose
The attachment fits all standard T-beams

Applications

Compatible with steel beams with max. flange thickness of 23 mm
For fastening MQ channels to steel beams without drilling or welding (use only in pairs!)
