Filling washer (stainless steel)
New productItem #r4929927

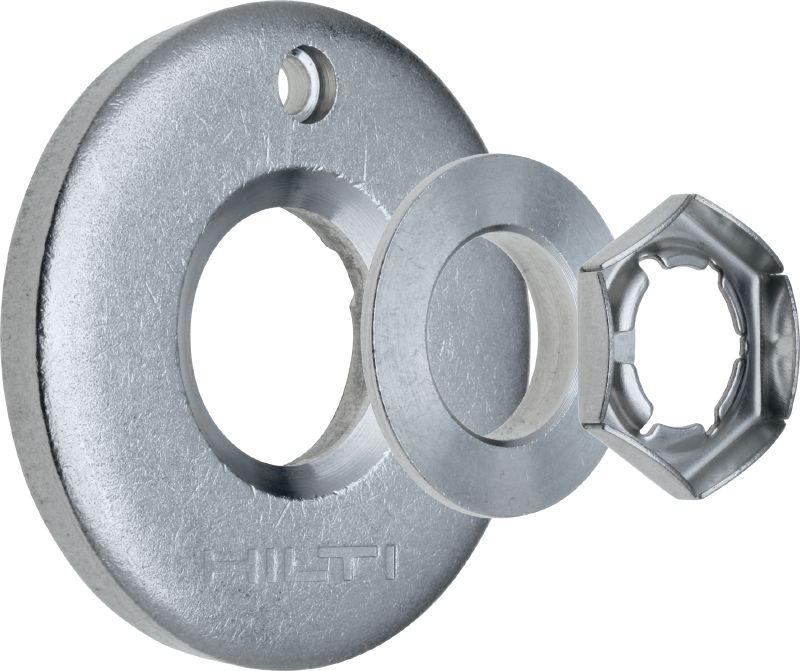

Set for filling the annular gap in mechanical and chemical anchors (A4 stainless steel)
Share
Features
- Designed to fill the annular gap as required by code for seismic and fatigue conditions
- Through-fastening is possible

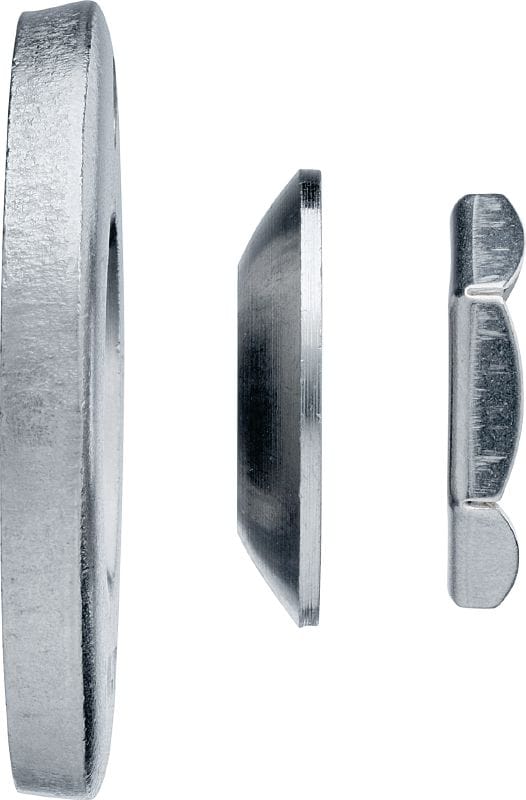

- Optimal load transfer through the spherical washer and filling of the annular gap
- Sizes M8-M24 include a lock nut (as shown on picture)
Applications
- Applications in which shear loads need to be taken up directly (gap to be filled with either HIT-HY or HIT-RE injectable adhesive mortars, depending on the steel element to be fastened)
- Seismic or fatigue applications
- The gap on expansion anchors (HST, HST2, HST3, HST4, HDA, HSL-4, HMU, HSA) must be filled with HIT-HY injectable adhesive mortars (HIT-RE is not suitable)
For approval or certificate information, please see individual items.
Documents
-
- ETA-17/0200 for adhesive capsule HVU-TZ and HAS-TZ, English, German, Polish, [ 2.1 MB ]
- ETA-12/0084_HIT-HY-200-R_Anchor_EC2&TR055_50years_082019, English, German, [ 3.4 MB ]
- ETA 12/0006 for HIT-HY 200-A injection mortar and HIT-Z(-F)(-R) rod for anchoring applications, English, German, Polish, [ 9.1 MB ]
- ETA 03/0032 for HVZ adhesive anchor system (ETAG 001-05, Option 1), English, German, [ 2.8 MB ]
- ETA-20/0541_HIT-RE 500 V4_Anchor_EC2_100years_112021, English, German, Polish, French, [ 8.9 MB ]
- ETA-19/0601 HIT-HY 200-A/R V3 Anchoring Jun-2023, English, German, Polish, [ 21.5 MB ]
- ETA-23/0277 HAS-U A4 Fatigue, English, German, Polish, [ 3.9 MB ]
- ETA-16/0143_HIT-RE 500 V3_Anchor_EC2_50&100years_052019, English, French, [ 5.3 MB ]
-
- Operating Instruction Seismic/Filling set, Italian, Hebrew, Serbian, German, Russia, Swedish, Turkish, Ukrainian, Arabic, French, Portuguese, Sardinian, Malay, Spanish, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 1.3 MB ]
